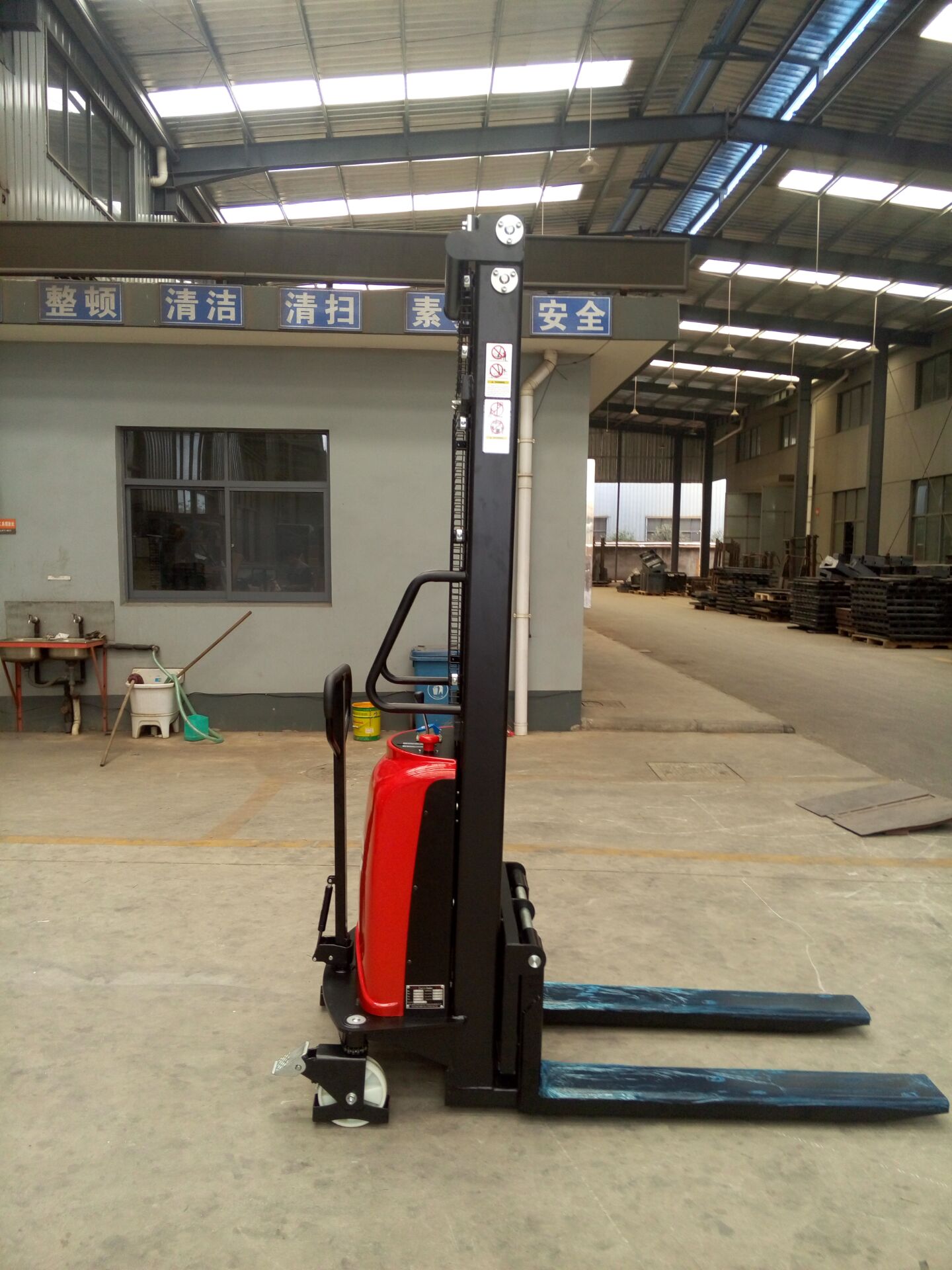

JAC Hand Operated Semi Electric Pallet Lifter Stacker Truck 2000kg 2T

Product Categories

JAC HEAVY DUTY IMPORT&EXPORT CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : JAC

Model Number : CDD20B

Certification : CE/SGS/ISO 9001/ISO 14001/SGS

Place of Origin : Hefei, China

MOQ : 1

Payment Terms : T/T

Supply Ability : 5000

Delivery Time : 8 work days

Rated traction weight : 2000kg

Power : Semi-electric

Battery : Lead-acid battery

Load centre : 450mm

Wheels type : PU

Lifting height : 1600/2000/2500/3000/3500mm

Min.Turning radius : 1350mm

Width of forks : 550/640mm

Fork dimensions : 60/150/900(1100)mm

Battery voltage : 12V

Battery rated capacity : 120Ah

Contact Now

JAC Hand Operated Semi Electric Pallet Lifter Stacker Truck 2000kg 2T

Characteristics	1.1	Manufacturer	Unit	JAC
	1.2	Model		CDD20B
	1.3	Operation		Hand
	1.4	Load capacity	kg	2000
	1.5	Load center distance	mm	450
Weights	2.1	Service Weight	Kg	325	380	455	475
Wheels	3.1	Wheels type		PU
Dimensions	4.1	The max. lifting height	mm	1600	2000	2500	3000
	4.2	Load capacity on Max. height	kg	2000	1600	1400	1100
	4.3	Extended mast height	mm	2077	2567	3067	3567
	4.4	Lowered mast height	mm	2077	1577	1827	2077
	4.5	Lowered fork height	mm	85
	4.6	Overall length(with Pedal)	mm	1600(900 )/1800(1100 )
	4.7	Overall width	mm	760
	4.8	Overall fork width	mm	550/ 640
	4.9	Fork length	mm	900/1100
	4.1	Single fork width	mm	150
	4.11	Aisle width for pallets 1000×1200 cross ways	mm	2250
	4.12	Aisle width for pallets 800×1200 length ways	mm	2040
	4.13	Turning radius	mm	1350
Drive/Battery	6.1	Power motor	V/KW	DC,12V/1.5KW
Drive/Battery	6.2	Battery voltage	V/Ah	12V/120Ah

JAC Hand Operated Semi Electric Pallet Lifter Stacker Truck 2000kg 2T
